Written by knopsl

Arduino Drumsampler – Jan Ostman build

I found this one on the lmnc forum and it seems the guy that developed the drumsampler isn’t maintaining his website anymore. I found it on the wayback machine and after some minor modifications with the help of the aforementioned forum/kind people I got it to work.

Simple and easy to work with. The Bassdrum and the Crash have fixed pitch. The other six sounds pitch can be modified via the knobs.

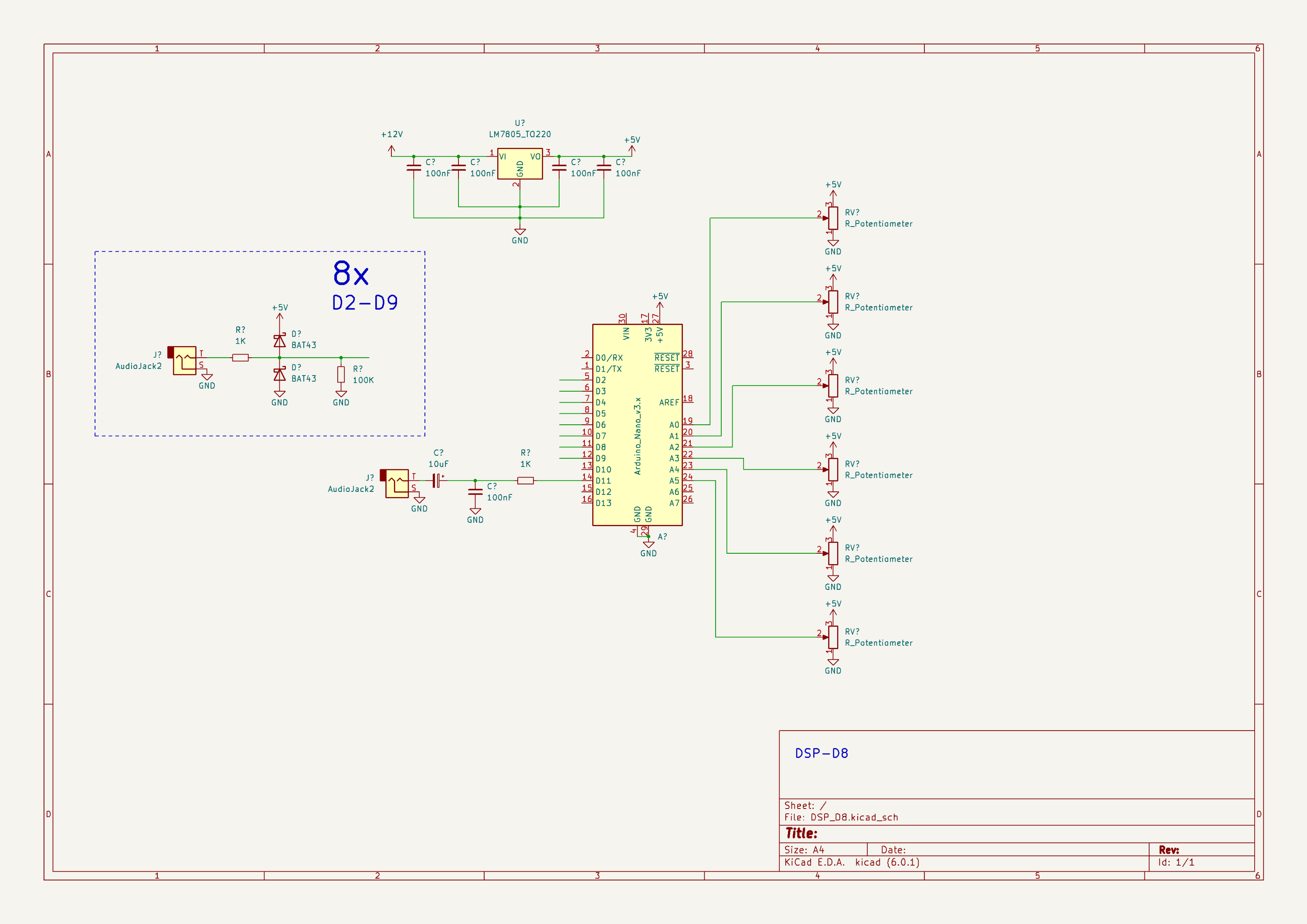

This is the schematic I used. It could be improved I’m sure  the trigger inputs have input protection the audio output doesn’t to the same extent. The 1k in series is usually enough for short circuiting

Link to my Drive with two versions of the modified code. The d8 has the drum sounds from my demo, the l8 is the latin version.

CODE: HERE

Little demo with my drumsequencer
