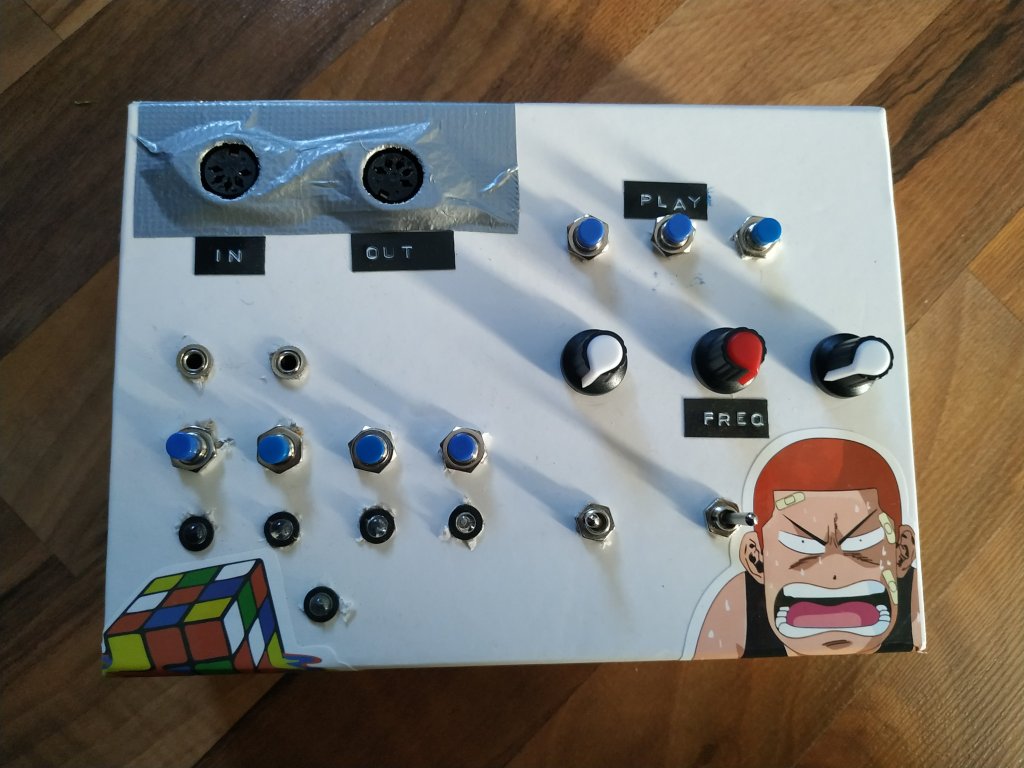

After finding the YT video I was sure I want this for my korg volcas. I was the first one buildong it besides the creator and I could even help him find smaller bugs and verify the fixes. Most of the content of this post is a copy of the original page.

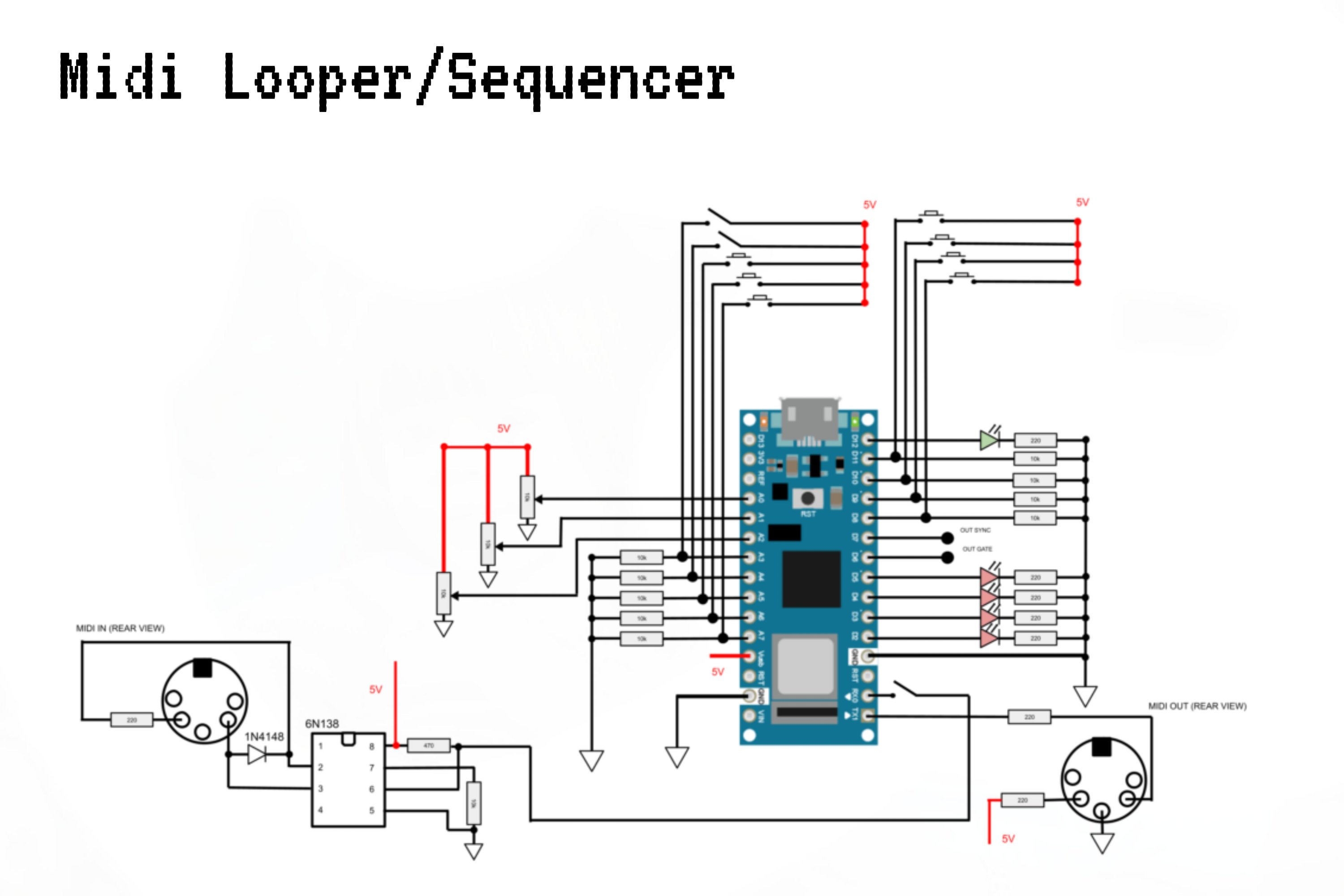

Here is the list arduino’s pin & their purposes :
D2 : LED channel 1
D3 : LED channel 2
D4 : LED channel 3
D5 : LED channel 4
D6 : CV gate output
D7 : CV sync output
D8 : channel 1 button
D9 : channel 2 button
D10 : channel 3 button
D11 : channel 4 button
D12 : LED beat
A0 : tempo potentiometer
A1 : bar count potentiometer
A2 : step count potentiometer
A3 : MIDI thru switch
A4 : transposition switch
A5 : start/stop button
A6 : erase button
A7 : shift button
⚠ There’s a switch at the RX0 pin of the Arduino Nano. THIS IS SOMETHING REALLY IMPORTANT – when the switch is ON, it allows you to play normally with the device, but when the switch is OFF, it allows you to upload a new code inside the Arduino. I didn’t use a switch tho I used a pinheader and a jumper that I can remove when I need to upload a new firmware to the arduino.
BOM
1* Arduino Nano
1* 6N138 Octocoupler
1* 1N4148 diode
5* LED (I choose 4 for the channel buttons, and 1 green for the beat … but you do whatever you want! )
3* 10k potentiometer (I think you can use 50k or 100k, it shouldn’t make any difference …)
8* 220 ohm resistors
10* 10k resistors
7* push buttons
3* switches
2* jack female socket
2* MIDI female sockets
#include <uClock.h>
#include <MIDI.h>
#define TEMPO_ANALOG_IN 0
#define BARCOUNT_ANALOG_IN 1
#define STEPCOUNT_ANALOG_IN 2
#define MIDITHRU_ANALOG_IN 3
#define TRANSPOSE_ANALOG_IN 4
#define SHIFT_ANALOG_IN 5
#define ERASE_ANALOG_IN 6
#define PLAYSTOP_ANALOG_IN 7
#define CHANNEL_4_LED 2
#define CHANNEL_3_LED 3
#define CHANNEL_1_LED 4 // Yes, I inverted the 1 & 2 LEDS when I built my box
#define CHANNEL_2_LED 5
#define OUT_GATE 6
#define OUT_SYNC 7
#define CHANNEL_4_PIN 8
#define CHANNEL_3_PIN 9
#define CHANNEL_2_PIN 10
#define CHANNEL_1_PIN 11
#define BEATOUT_LED 12
#define CHANNEL_COUNT 4
#define SEQUENCE_LENGTH_MAX 128
#define STEP_PER_BAR_MAX 16
#define TEMPO_MIN 30
#define TEMPO_MAX 200
#define MAX_KEY_PRESSED 10
//THIS is for my personal use
//This will map channel 5,6,7,8 as channel 1,2,3,4 MIDI thru
#define USE_MIDI_THRU_CHANNELS 1
byte ledPins[4] = {CHANNEL_1_LED, CHANNEL_2_LED, CHANNEL_3_LED, CHANNEL_4_LED};
MIDI_CREATE_DEFAULT_INSTANCE();
bool midiThruChannels = (bool)USE_MIDI_THRU_CHANNELS;
bool shiftIsPressed = false;
bool fillIsDone = false;
unsigned long delayStart = 0;
bool delayIsRunning = false;
int currentBarCount = 1;
int currentStepCount = STEP_PER_BAR_MAX;
uint32_t midiTick = 0;
bool useMidiClock = false;
int currentSeqLength = 16;
bool isPlaying = false;
bool isPlayingSwitchState = false;
bool needsToSendMidiStart = false;
bool midiThru = false;
bool transposeMode = false;
byte currentChannel = 0;
byte transpose[CHANNEL_COUNT];
byte baseNote = 60;
byte currentPosition = 0;
byte sequence[CHANNEL_COUNT][SEQUENCE_LENGTH_MAX];
byte previousNote[CHANNEL_COUNT];
class ArpState {
public:
byte list[MAX_KEY_PRESSED];
byte count = 0;
byte arpPos = 0;
void addNote(byte note) {
if (count < MAX_KEY_PRESSED) {
list[count] = note;
count++;
}
}
void removeNote(byte note) {
bool pop = false;
for (byte i = 0 ; i < count; i++) {
if (list[i] == note) {
pop = true;
}
if (pop && (i+1) < count) {
list[i] = list[i+1];
}
}
if (pop) {
count--;
}
}
byte getNote() {
byte pos = arpPos;
arpPos++;
if (arpPos >= count) {
arpPos = 0;
}
while (pos >= count && pos > 0) {
pos--;
}
return list[pos];
}
};
ArpState arpState;
bool arpIsOn = false;
bool arpPreviousState = false;
void clockOutput16PPQN(uint32_t* tick) {
if (!isPlaying) {
return;
}
bool isQuarterBeat = (((currentPosition % currentStepCount) % 4) == 0);
digitalWrite(BEATOUT_LED, isQuarterBeat);
if (!arpIsOn) {
for (size_t channel = 0; channel < CHANNEL_COUNT; channel++) {
if (previousNote[channel] > 0) {
MIDI.sendNoteOn(previousNote[channel], 0, channel + 1);
previousNote[channel] = 0;
}
byte currentNote = sequence[channel][currentPosition];
if (currentNote > 0) {
currentNote += transpose[channel];
MIDI.sendNoteOn(currentNote, 127, channel + 1);
previousNote[channel] = currentNote;
}
}
} else {
if (previousNote[currentChannel] > 0) {
MIDI.sendNoteOn(previousNote[currentChannel], 0, currentChannel + 1);
previousNote[currentChannel] = 0;
}
if (arpState.count > 0) {
byte note = arpState.getNote();
MIDI.sendNoteOn(note, 127, currentChannel + 1);
previousNote[currentChannel] = note;
}
}
currentPosition = (currentPosition + 1) % currentSeqLength;
}
void clockOutput32PPQN(uint32_t* tick) {
if (!isPlaying) {
return;
}
digitalWrite(OUT_GATE, (*tick % 2) == 0 ? HIGH : LOW);
digitalWrite(OUT_SYNC, (*tick % 4) < 2 ? HIGH : LOW);
}
void clockOutput96PPQN(uint32_t* tick) {
if (needsToSendMidiStart) {
needsToSendMidiStart = false;
Serial.write(0xFA);
}
Serial.write(0xF8);
}
void setup() {
//Serial.begin(31250);
TCCR1B = TCCR1B & B11111000 | B00000001;
uClock.init();
uClock.setClock16PPQNOutput(clockOutput16PPQN);
uClock.setClock32PPQNOutput(clockOutput32PPQN);
uClock.setClock96PPQNOutput(clockOutput96PPQN);
uClock.setTempo(96);
uClock.start();
for (size_t i = 0; i < SEQUENCE_LENGTH_MAX; i++) {
for (size_t channel = 0; channel < CHANNEL_COUNT; channel++) {
sequence[channel][i] = 0;
}
}
for (size_t channel = 0; channel < CHANNEL_COUNT; channel++) {
transpose[channel] = 0;
previousNote[channel] = 0;
}
pinMode(CHANNEL_1_LED, OUTPUT);
pinMode(CHANNEL_2_LED, OUTPUT);
pinMode(CHANNEL_3_LED, OUTPUT);
pinMode(CHANNEL_4_LED, OUTPUT);
pinMode(CHANNEL_1_PIN, INPUT);
pinMode(CHANNEL_2_PIN, INPUT);
pinMode(CHANNEL_3_PIN, INPUT);
pinMode(CHANNEL_4_PIN, INPUT);
pinMode(BEATOUT_LED, OUTPUT);
pinMode(OUT_GATE, OUTPUT);
pinMode(OUT_SYNC, OUTPUT);
MIDI.setHandleNoteOn(handleNoteOn);
MIDI.setHandleNoteOff(handleNoteOff);
MIDI.setHandlePitchBend(handlePitchBend);
MIDI.setHandleStart(handleStart);
MIDI.setHandleStop(handleStop);
MIDI.setHandleClock(handleClock);
MIDI.setHandleProgramChange(handleProgramChange);
MIDI.setHandleControlChange(handleControlChange);
MIDI.begin(MIDI_CHANNEL_OMNI);
MIDI.turnThruOff();
}
void handleShift() {
int shiftState = analogRead(SHIFT_ANALOG_IN);
shiftIsPressed = (shiftState > 200);
}
void handleErase() {
int erase = analogRead(ERASE_ANALOG_IN);
if (erase > 200) {
if (!shiftIsPressed) {
sequence[currentChannel][currentPosition] = 0;
} else {
for (size_t step = 0; step < SEQUENCE_LENGTH_MAX; step++) {
sequence[currentChannel][step] = 0;
}
}
}
}
void handleTempo() {
int tempoPot = analogRead(TEMPO_ANALOG_IN);
float tempo = round(((float)tempoPot/1024.f)*(TEMPO_MAX - TEMPO_MIN) + TEMPO_MIN);
uClock.setTempo(tempo);
}
void handleBarCount() {
int pot = analogRead(BARCOUNT_ANALOG_IN);
byte maxValue = SEQUENCE_LENGTH_MAX/STEP_PER_BAR_MAX;
int nextBarCount = round(((float)pot/1024.f)*(maxValue - 1) + 1);
if (nextBarCount != currentBarCount) {
currentBarCount = nextBarCount;
currentSeqLength = currentBarCount * currentStepCount;
displayIntValue(nextBarCount);
}
}
void handleStepCount() {
int pot = analogRead(STEPCOUNT_ANALOG_IN);
int nextStepCount = round(((float)pot/1024.f)*(STEP_PER_BAR_MAX - 1) + 1);
if (nextStepCount != currentStepCount) {
currentStepCount = nextStepCount;
currentSeqLength = currentBarCount * currentStepCount;
displayIntValue(nextStepCount);
}
}
void displayIntValue(int value) {
int b[4] = {1,2,4,8};
for (int i = 0; i < CHANNEL_COUNT; i++) {
int state = value & b[i];
digitalWrite(ledPins[i], (state > 0) ? HIGH : LOW);
}
delayStart = millis();
delayIsRunning = true;
}
void handleMidiThru() {
int midiThruState = analogRead(MIDITHRU_ANALOG_IN);
midiThru = (midiThruState > 200);
}
void handleTranspose() {
int transposeState = analogRead(TRANSPOSE_ANALOG_IN);
transposeMode = (transposeState > 200);
}
void handleCurrentChannel() {
bool channelStates[4] = {false, false, false, false};
channelStates[0] = digitalRead(CHANNEL_1_PIN) == HIGH;
channelStates[1] = digitalRead(CHANNEL_2_PIN) == HIGH;
channelStates[2] = digitalRead(CHANNEL_3_PIN) == HIGH;
channelStates[3] = digitalRead(CHANNEL_4_PIN) == HIGH;
if (shiftIsPressed) {
if (channelStates[0] && !fillIsDone) { //FILL MODE
fill();
}
if (channelStates[0]) {
fillIsDone = false;
}
if (channelStates[1] && !arpPreviousState) {
arpIsOn = !arpIsOn;
arpPreviousState = true;
}
} else {
for (byte i = 0; i < 4; i++) {
if (channelStates[i]) {
currentChannel = i;
}
}
if (!delayIsRunning) {
for (byte i = 0; i < CHANNEL_COUNT; i++) {
bool state = i == (currentChannel);
digitalWrite(ledPins[i], state ? HIGH : LOW);
}
}
}
if (channelStates[1] == false) {
arpPreviousState = false;
}
}
void setIsPlaying(bool state) {
isPlaying = state;
if (state) {
uClock.stop();
//delay(20);
needsToSendMidiStart = true;
if (!useMidiClock) {
uClock.start();
}
} else {
Serial.write(0xFC);
for (size_t channel = 0; channel < CHANNEL_COUNT; channel++) {
if (previousNote[channel] > 0) {
MIDI.sendNoteOn(previousNote[channel], 0, channel + 1);
previousNote[channel] = 0;
}
}
digitalWrite(OUT_GATE, LOW);
digitalWrite(OUT_SYNC, LOW);
digitalWrite(BEATOUT_LED, LOW);
//delay(20);
currentPosition = 0;
}
}
void handleStartStop() {
int startStopStart = analogRead(PLAYSTOP_ANALOG_IN);
bool newPlayingState = (startStopStart > 200);
if (newPlayingState != isPlayingSwitchState) {
isPlayingSwitchState = newPlayingState;
if (isPlayingSwitchState) {
if (isPlaying && shiftIsPressed) {
currentPosition = 0;
} else {
setIsPlaying(!isPlaying);
}
}
}
}
void fill() {
for (size_t i = currentSeqLength; i < SEQUENCE_LENGTH_MAX; i++) {
for (size_t channel = 0; channel < CHANNEL_COUNT; channel++) {
sequence[channel][i] = sequence[channel][i % currentSeqLength];
}
}
fillIsDone = true;
}
void loop() {
handleShift();
handleTempo();
handleBarCount();
handleStepCount();
handleMidiThru();
handleTranspose();
handleStartStop();
handleCurrentChannel();
handleErase();
if ((millis() - delayStart) >= 2000 && delayIsRunning) {
delayIsRunning = false;
}
//for debug purpose
//digitalWrite(CHANNEL_1_LED, shiftIsPressed ? HIGH : LOW);
MIDI.read();
}
void handleNoteOn(byte channel, byte note, byte velocity) {
if (midiThruChannels && (channel >= 5 && channel <= 8)) {
MIDI.sendNoteOn(note, velocity, channel - 4);
} else {
arpState.addNote(note);
if (midiThru) {
MIDI.sendNoteOn(note, velocity, channel);
} else {
if (transposeMode) {
transpose[currentChannel] = note - baseNote;
} else {
if (arpIsOn) {
} else {
sequence[currentChannel][currentPosition] = note;
}
}
}
}
}
void handleNoteOff(byte channel, byte note, byte velocity) {
if (midiThruChannels && (channel >= 5 && channel <= 8)) {
MIDI.sendNoteOff(note, velocity, channel - 4);
} else {
arpState.removeNote(note);
if (midiThru) {
MIDI.sendNoteOff(note, velocity, channel);
}
}
}
void handlePitchBend(byte channel, int bend) {
if (midiThru) {
MIDI.sendPitchBend(bend, channel);
}
}
void handleProgramChange(byte channel, byte number) {
if (midiThruChannels && (channel >= 5 && channel <= 8)) {
MIDI.sendProgramChange(number, channel - 4);
} else {
MIDI.sendProgramChange(number, channel);
}
}
void handleControlChange(byte channel, byte control, byte value) {
if (midiThruChannels && (channel >= 5 && channel <= 8)) {
MIDI.sendControlChange(control, value, channel - 4);
} else {
MIDI.sendControlChange(control, value, channel);
}
}
void handleStart() {
useMidiClock = true;
setIsPlaying(true);
midiTick = 0;
}
void handleStop() {
setIsPlaying(false);
useMidiClock = false;
}
void handleClock() {
if (midiTick % 6 == 0) {
uint32_t _step = midiTick / 6;
clockOutput16PPQN(&_step);
}
if (midiTick % 3 == 0) {
uint32_t half = midiTick / 3;
clockOutput32PPQN(&half);
}
midiTick = midiTick + 1;
}
knopsl modular
