YesNoMaybe – YMNK probability gate module

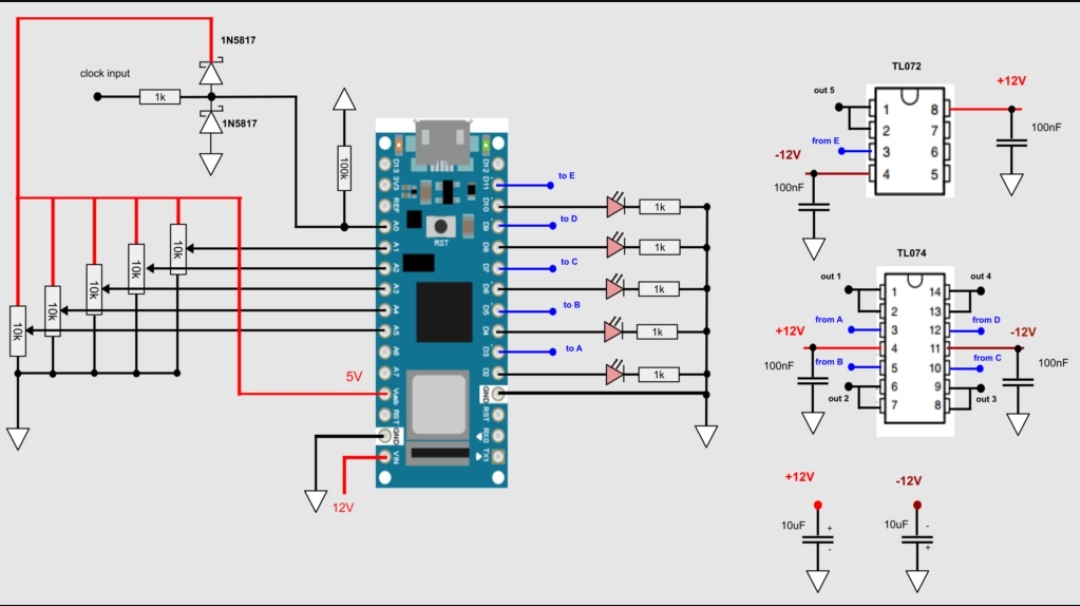

This module is great for adding a bit of randomness to sequences for example. You input a clock signal and output five variations of the same signal with different probabilities.

Original project page: Here


#define CLOCK_IN 0

#define LED_OUT_START 2
#define POT_START 1

#define LED_COUNT 5

const byte outputCount = 5;
bool state = false;

void setup() {

Serial.begin(9600);

for (byte i = 0; i < LED_COUNT; i++) {
byte pinPosition = LED_OUT_START + i*2;
pinMode(pinPosition, OUTPUT);
pinMode(pinPosition +1, OUTPUT);
}

randomSeed(analogRead(7));
}

void loop() {


int clockIn = analogRead(CLOCK_IN);
bool clockInState = (clockIn > 200);

if (clockInState != state) {

state = clockInState;

if (clockInState) {

for (byte i = 0; i < LED_COUNT; i++) {
long randomValue = random(1024);

long potValue = analogRead(POT_START + i);

bool state = potValue >= randomValue;

byte pinPosition = LED_OUT_START + i*2;
digitalWrite(pinPosition, state ? HIGH : LOW);
digitalWrite(pinPosition + 1, state ? HIGH : LOW);

}

} else {
for (byte i = 0; i < LED_COUNT; i++) {
byte pinPosition = LED_OUT_START + i*2;
digitalWrite(pinPosition, LOW);
digitalWrite(pinPosition + 1, LOW);
}
}
}


}
